LG03
Loudspeaker Enclosure
1 x 6.5″ Bass Mid Driver +1″ Horn – 125 Watts Program

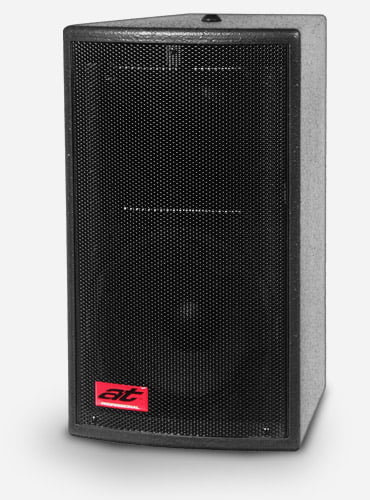

Acoustic Technologies LG03 is an extremely compact trapezoidal shaped cabinet constructed of high quality 12mm MDF and finished in a wide variety of coatings and colours and is supplied complete with mounting bracket.
The LG03 is loaded with our proprietary LG Series 6.5″ Bass/Mid Transducer and is coupled via an advanced design crossover network to a 1″ H. F. Compression Driver and 90° x 60° Horn Flare. The Horn Flare can be rotated through 90° allowing the cabinet to be mounted for either vertical or horizontal applications and still maintain the required H. F. dispersion characteristics.
Acoustic Technologies LG Series Loudspeakers are suited to a diverse range of applications including foreground music systems in Retail Stores and Shops, Restaurants, Bars and Bistros, Churches and Corporate Boardrooms.
The LG03 in particular is extremely popular in the Audio Visual contracting market where a small full range cabinet capable of reproducing speech and vocals with crystal clarity is essential.
Specifications
| Transducer Complement | 1 x 6.5″ x Bass-Mid Transducer 1 x 1″ HF Compression Driver |
| Frequency Response | 75 Hz – 19 kHz ± 3 dB |
| Nominal Impedance | 8 or 16 Ohms |
| Sensitivity | 92 dB @ 1 watt, 1 metre |
| Maximum Input Continuous Maximum Input Program | 65 Watts RMS 125 Watts Program |
| Maximum SPL Continuous Maximum SPL Program | 110 dB @ 1 metre 113 dB @ 1 metre |
| High Frequency Dispersion | 90º Horizontal 60º Vertical H. F. Flare rotatable through 90º. |
| Dimensions | Height 343mm, Depth 250mm, Width Front 198mm, Rear 131mm |
| Net Weight | 7 Kg (Varies slightly with options) |
| Connector Options | Screw Terminal Barrier Strip. Weatherproof Cable Gland. |
| Mounting Options | “C” Bracket Supplied. |
| Cabinet Finish Options | Textured Black or White Paint Finish. A wide range of decor matched and custom finishes are available upon request. |
| Grille Finish Options | Black or White Powder Coat Paint Finish. Weather Resistant Treatment. Colour matched for decor cabinets. |
The LG03 enclosure is constructed of high quality 12mm MDF. A wide range of hardware, connector, grille and cabinet finishing options are available.
The transducers are protected by a perforated steel mesh providing a durable visually appealing finish.
The LG03 passive crossover provides a seamless transition between the transducers. The crossover frequency is selected to enhance the already superb performance of the individual components. Great care is taken to ensure that a phase coherent output is maintained across the entire audio bandwidth.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the LG03, without prior warning in the interests of product improvement.
