LG04
Loudspeaker Enclosure
2 x 6.5″ Bass Mid Driver +1″ Horn – 250 Watts Program

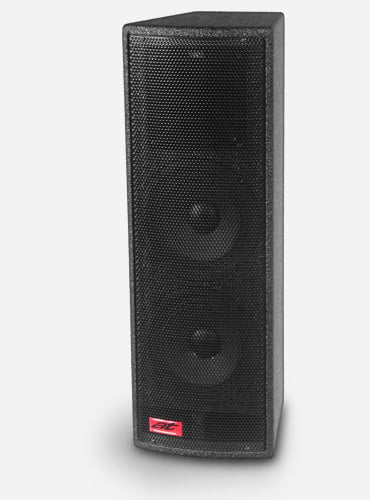

Acoustic Technologies LG04 is an extremely compact trapezoidal shaped cabinet constructed of high quality 12mm MDF and finished in a wide variety of coatings and colours and is supplied complete with mounting bracket.
The LG04 is loaded with two of our proprietary LG Series 6.5″ Bass/Mid Transducers and is coupled via an advanced design crossover network to a 1″ H.F. Compression Driver and 90° x 60° Horn Flare. The Horn Flare can be rotated through 90° allowing the cabinet to be mounted for either vertical or horizontal applications and still maintain the required H.F. dispersion characteristics.
Acoustic Technologies LG Series Loudspeakers are suited to a diverse range of applications including foreground music systems in Retail Stores and Shops, Restaurants, Bars and Bistros, Churches and Corporate Boardrooms.
The LG04 in particular is extremely popular in the Audio Visual contracting market where a small full range cabinet capable of reproducing speech and vocals with crystal clarity is essential.
Specifications
| Transducer Complement | 2 x 6.5″ x Bass-Mid Transducer 1 x 1″ H.F. Compression Driver |
| Frequency Response | 70 Hz – 16 kHz ± 3 dB |
| Nominal Impedance | 4, 8 or 16 Ohms |
| Sensitivity | 92 dB @ 1 watt, 1 metre |
| Maximum Input Continuous Maximum Input Program | 125 Watts RMS 250 Watts Program |
| Maximum SPL Continuous Maximum SPL Program | 113 dB @ 1 metre 116 dB @ 1 metre |
| High Frequency Dispersion | 90º Horizontal 60º Vertical H.F. Flare rotatable through 90º. |
| Dimensions | Height 583mm, Depth 248mm, Width Front 198mm, Rear 131mm |
| Nett Weight | 12 Kg (Varies slightly with options) |
| Connector Options | Screw Terminal Barrier Strip. Weatherproof Cable Gland. |
| Mounting Options | “C” Bracket Supplied. Speaker Stand Mount. |
| Cabinet Finish Options | Textured Black or White Paint Finish. A wide range of decor matched and custom finishes are available upon request. |
| Grille Finish Options | Black or White Powder Coat Paint Finish. Weather Resistant Treatment. Colour matched for decor cabinets. |
The LG04 enclosure is constructed of high quality 12mm MDF. A wide range of hardware, connector, grille and cabinet finishing options are available.
The transducers are protected by a perforated steel mesh providing a durable visually appealing finish.
The LG04 passive crossover provides a seamless transition between the transducers. The crossover frequency is selected to enhance the already superb performance of the individual components. Great care is taken to ensure that a phase coherent output is maintained across the entire audio bandwidth.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the LG04, without prior warning in the interests of product improvement.
