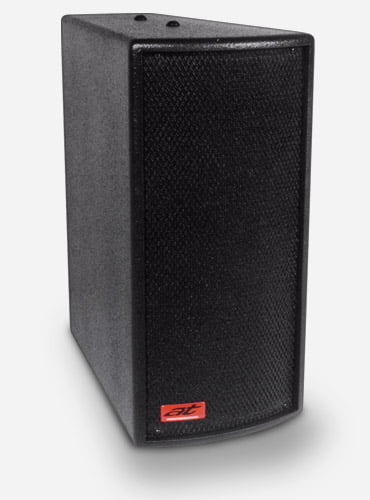

LG07
Compact Full Range Loudspeaker Enclosure
2 x 6.5″ Bass Mid Driver +1″ Horn – 250 Watts Program
Acoustic Technologies LG07 Compact Full Range Loudspeaker Enclosure has been developed as a studio quality cabinet suited to a wide and diverse range of professional audio applications.
The result is a remarkably compact trapezoidal cabinet housing two 6.5″ bass- mid transducers flanking an extended range 1″ high frequency compression driver coupled to a 100º(H) x 100º(V) horn flare developed specifically for the LG07. Our unique “floating horn technology” mechanically decouples the horn flare and driver from the baffle board, resulting in an outstanding improvement in clarity, frequency response, sound field imaging and overall audio coherence.
The LG07 is equally at home providing high intelligibility A/V audio or reproducing all types of program music and speech. Applications include Board Room A/V Installations, Party Bars, Night Clubs, high end Home Theatre, outdoor Public Address systems and Theme Parks.
Specifications
| Transducer Complement | 2 x 6.5″ x Bass-Mid Transducer 1 x 1″ H.F. Compression Driver |
| Frequency Response | 68 Hz – 20 kHz ± 3 dB |
| Nominal Impedance | 4, 8 or 16 Ohms |
| Sensitivity | 92 dB @ 1 watt, 1 metre |
| Maximum Input Continuous Maximum Input Program | 150 Watts RMS 300 Watts Program |
| Maximum SPL Continuous Maximum SPL Program | 113 dB @ 1 metre 116 dB @ 1 metre |
| High Frequency Dispersion | 100° Horizontal 100° Vertical |
| Dimensions | Height 455mm, Depth 375mm, Width Front 215mm, Rear 130mm |
| Nett Weight | 13 Kg (Varies slightly with options) |
| Connector Options | Screw Terminal Barrier Strip. |
| Mounting Options | “C” Bracket Supplied. |
| Cabinet Finish Options | Textured Black or White Paint Finish. A wide range of decor matched and custom finishes are available upon request. |
| Grille Finish Options | Black or White Powder Coat Paint Finish. Weather Resistant Treatment. Colour matched for decor cabinets. |
The LG07 enclosure is constructed of high quality 12mm MDF. A wide range of hardware, connector, mounting, grille and cabinet finishing options are available. The transducers are protected by a perforated steel mesh providing a durable visually appealing finish.
The LG07 passive crossover provides a seamless transition between the transducers. The crossover frequency is selected to enhance the already superb performance of the individual components. Great care is taken to ensure that a phase coherent output is maintained across the entire audio bandwidth.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the LG07, without prior warning in the interests of product improvement.
