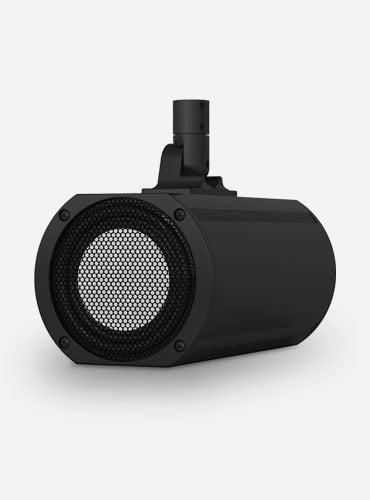

MK100 & MK100A
Compact Loudspeaker System
1 x 4 ” Aluminium Planar Driver – 150 Watts Program
Acoustic Technologies MK100 and MK100A represent a new generation of compact installation loudspeaker systems. The MK100 (passive) and MK100A (self-powered) are perfectly suited to a wide range of installation applications including corporate AV environments, restaurants, cafes and hospitality venues, retail spaces, sound masking & education environments.
With its on-board 150 Watt ultra-reliable Class D power amplifier, the MK100A offers exceptional audio performance with a smooth, flat response extending from 90Hz to 19kHz. An Integrated power module, balanced XLR input with link output and simple yet flexible mounting bracket make the MK100A a convenient solution to a wide variety of applications.
The MK100 and MK100A’s ultra-wide dispersion characteristics are what really set it apart from its competitors. With a nominal dispersion angle of 120°, the loudspeaker redefines the meaning of “Wide Dispersion”. Even at 7kHz, the MK100/A still offers a remarkable 120° (horizontal and vertical) dispersion – resulting in an unprecedented level of superior coverage.
Series Specifications
| Transducer Complement | 1 x 4” Aluminium Planar Technology Neodymium Transducer |
| Frequency Response | 90 Hz – 19 kHz ± 3 dB |
| Nominal Impedance | 6 Ohms |
| Maximum SPL Program Maximum SPL Peak | 104 dB @ 1 metre 108 dB @ 1 metre |
| High Frequency Dispersion | Horizontal – 120º ± 10º (below 8.0 kHz)Vertical – 120º ± 10º (below 8.0 kHz) |
| Dimensions | 108mm (H) x 126mm (W) x 234mm (D) |
| Mounting Options | MK Series Swivel Bracket. |
| Cabinet Finish Options | Black or White Powder Coat Paint Finish. OR Custom colours available on order |
| Grille Finish Options | Black or White Powder Coat Paint Finish. OR Custom colours available on order |
MK100A Specifications
| Nett Weight | 2.1 Kg |
| Connector Options | Neutrik 3 Pin XLR with Signal Link Connector |
| Input Impedence | 10 kOhm Electronically Balanced |
| Input Sensitivity | 0.755 V RMS (-2.5dBV) for onset of clipping |
| Switch Mode Power Supply | SMPS Requirements: 220 – 240 Volts AC @ 2 Amps Power Connector: IEC Mains Lead with integrated Fuse Holder and Mains Switch Power On Indication: Red LED on Rear Panel |
| Amplification | Amplifier Type: Class D Amplifier Output Power: 150 Watts into 6 Ohms THD+N 0.002% Amplifier Cooling: Convection Cooled |
MK100 Specifications
| Nett Weight | 1.9 Kg |
| Connector Options | NEUTRIK Speakon ® or Screw Ternminal |
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the MK100, without prior warning in the interests of product improvement.
