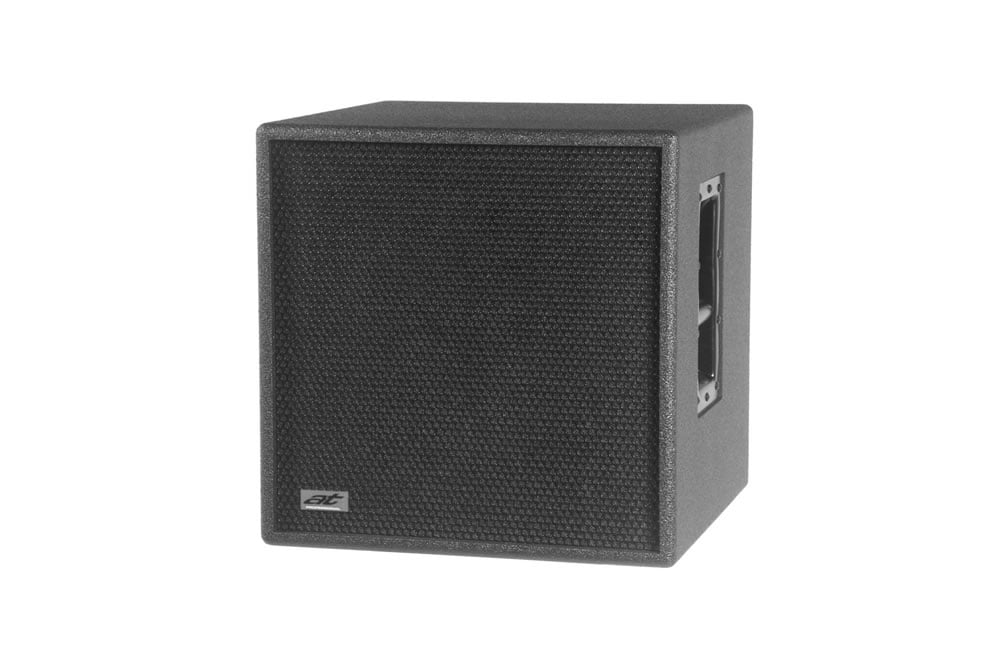

SB01
Sub Bass Enclosure
1x 15″ Sub Bass Driver – 800 Watts Program
The Acoustic Technologies SB01 Sub Bass Cabinet substantially redefines the size and performance expectations for compact sub bass enclosures !!
The SB01 utilises a high powered 15″ transducer specifically designed for sub bass applications. The extended length voice coil and innovative suspension system provides exceptional performance under high level, high excursion signal conditions. This allows the SB01 to provide a full power response to a low 45Hz, free from any colouration or distortion caused by over excursion or cone breakup.
Just punchy, full, fat bass energy!!
And yet, the SB01 remains a remarkably compact and easily transported loudspeaker enclosure, ideal for Live Music Applications, Mobile DJ’s, Karaoke Artists, and Audio-Visual Presentations to name but a few. The SB01 also finds ready acceptance in pro-audio installations and can be found in Night Clubs, high-end Restaurants and Wine Bars, Cinema’s and House of Worship Systems.
The SB01 is available with many finish and hardware options making for a truly versatile and professional sub bass loudspeaker cabinet.
Specifications
| Transducer Complement | 1 x 15″ Sub Bass Transducer |
| Frequency Response | 45 Hz – 1200 Hz ± 3 dB |
| Sensitivity | 98 dB @ 1 watt, 1 metre |
| Maximum Input | Continuous: 400 Watts RMS Program: 800 Watts Program |
| Maximum SPL | Continuous: 124 dB @ 1 metre Program: 127 dB @ 1 metre |
| Nominal Impedance | 8 Ohms |
| Dimensions | Height 512mm, Width 512mm, Depth 512 mm |
| Nett Weight | 28Kg (Varies slightly with options) |
| Connectors | 2 x Speakon Connectors. |
| Hardware & Flying Options | Handgrips. Castors. Pole Fitting for Mid/High Cabinets. Fixed Installation Attachment Points. Fly Track Rigging System. |
| Cabinet Finish Options | Textured Black Paint Finish. AcoustiCoate Black Elastomer Finish. A wide range of decor matched and custom finishes are available. |
| Grille Finish Options | Black Powder Coat Paint Finish. Chrome Plated. Weather Resistant Treatment. Colour matched for decor cabinets . |
The SB01 enclosure is constructed of high quality 18mm Finnish Birch Ply. A wide range hardware, grill and cabinet finishing options are available. The transducers are protected by a rugged expanded steel grille. a coustically transparent PVC foam is bonded to the mesh, providing a durable, visually appealing finish.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the SB01, without prior warning in the interests of product improvement.
