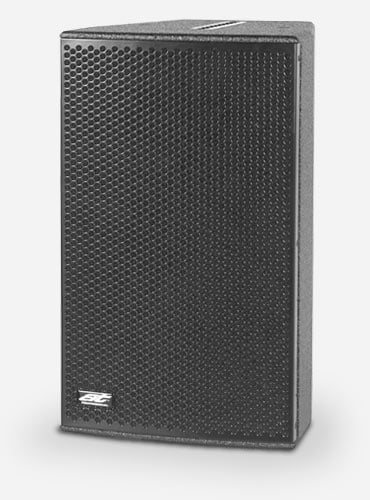

SS24A
Professional Self Powered Loudspeaker Enclosure
1x 12″ Bass/Mid Driver +2″ Horn
Dual Channel Class D Amplifier Module
The SS24A professional self powered full range loudspeaker system is designed to fulfill a wide range of high end touring and production applications. The loudspeaker system employs an extremely efficient 12″ neodymium low/mid frequency transducer and an advanced 2″ exit neodymium H.F. compression driver with a choice of 70° or 100° waveguides developed specifically for this cabinet.
The SS24A is powered by a sophisticated dual channel Class D Amplifier Module complete with a fully integrated Switch Mode Power Supply and onboard Digital Signal Processing. BvNET hardware and Podware software provides complete control and monitoring of the SS24A´s amplifiers and internal DSP system and facilitates networking in multi-cabinet systems. Acoustic Technologies manufactures a wide range of loudspeaker systems which incorporate BvNET / Podware, allowing a fully networked system to be controlled and monitored from a single convenient location. For even greater capability Podware can be used as a plug-in with AFMG SysTune audio analysis software.
The SS24A is constructed from the highest quality 18mm Finnish Birch Ply coated with Acoustic Technologies proprietary elastomer AcoustiCoate protective finish. A powder coated steel grille, versatile fly track rigging system and pole mount adapter complete a robust, durable and versatile touring cabinet.
The end result is a truly professional loudspeaker system offering extremely high output with a smooth extended frequency response eminently suitable for all music and vocal reproduction.
Specifications
| Transducer Complement | 1x 12″ Neodymium Bass/Mid Transducer 1x 2″ Neodymium H.F. Compression Driver |
| Frequency Response | 60 Hz – 18 kHz ± 3 dB |
| High Frequency Dispersion | 70°(H) x 40°(V) or 100°(H) x 40°(V) |
| Maximum SPL (Calculated) | 131 dB @ 1 metre |
| Sensitivity | 100 dB @ 1 Watt, 1 metre |
| Input Impedence | 11 kOhms Balanced |
| Amplifier Module Output Power | 1250 + 1250 Watts RMS |
| Amplifier Module Type | Dual Channel Class D with on-board DSP and Switch Mode Power Supply |
| Connectors | 1x Female XLR – Signal Input 1x Male XLR – Signal Link 2x RJ45 BVNET Input & Link 1x Powercon – 240Volt AC Mains Inlet |
| Physical Size | Height 556mm (inc Feet), Depth 443mm, Front Width 331mm, Back Width 217mm |
| Net Weight | 27.5 Kgs / 61 Lbs |
| Hardware | 2x Handgrip Fly Track Rigging System Pole Mount Fitting |
| Cabinet Finish | AcoustiCoate Black Elastomer Finish. |
| Grille Finish | Black Powder Coat Paint Finish |
The SS24A enclosure is constructed of high quality void free 18mm Finnish Birch Ply. The transducers are protected by a perforated steel mesh, lined with acoustically transparent foam, providing a durable visually appealing finish.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the SS24A, without prior warning in the interests of product improvement.
