TLA039A & TLA521A
Self Powered Line Array Loudspeaker Systems
6.5″ Bass Transducers + 2″ Full Range Elements
The TLA039A and TLA521A are versatile, compact, full range self-powered line array systems, providing excellent performance in a wide range of difficult installation applications. They are ideally suited for use in highly reverberant spaces where there is no suitable location for conventional sub bass cabinets.

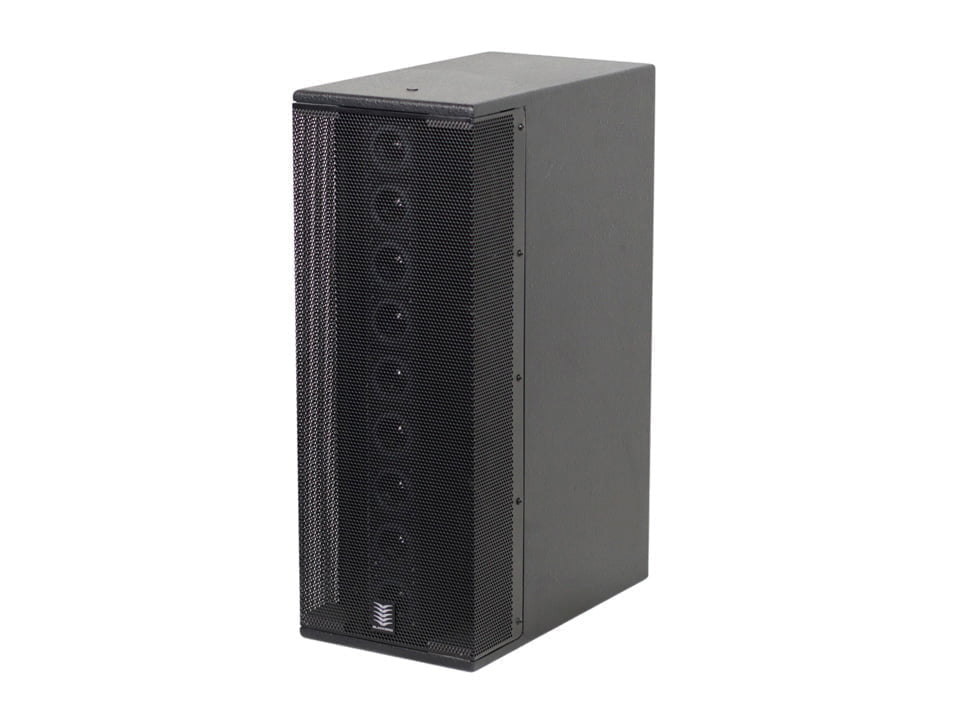

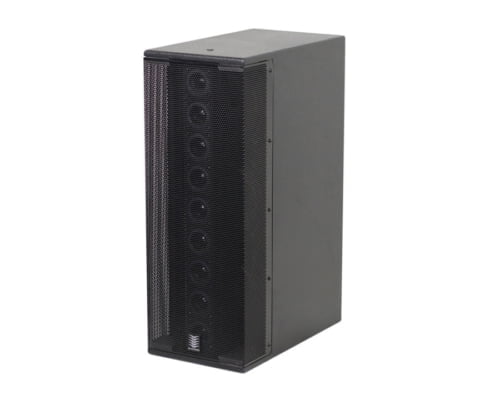

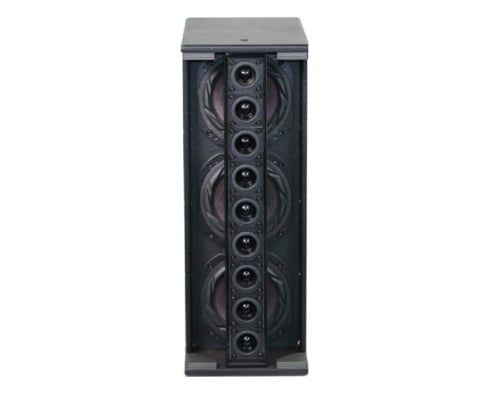

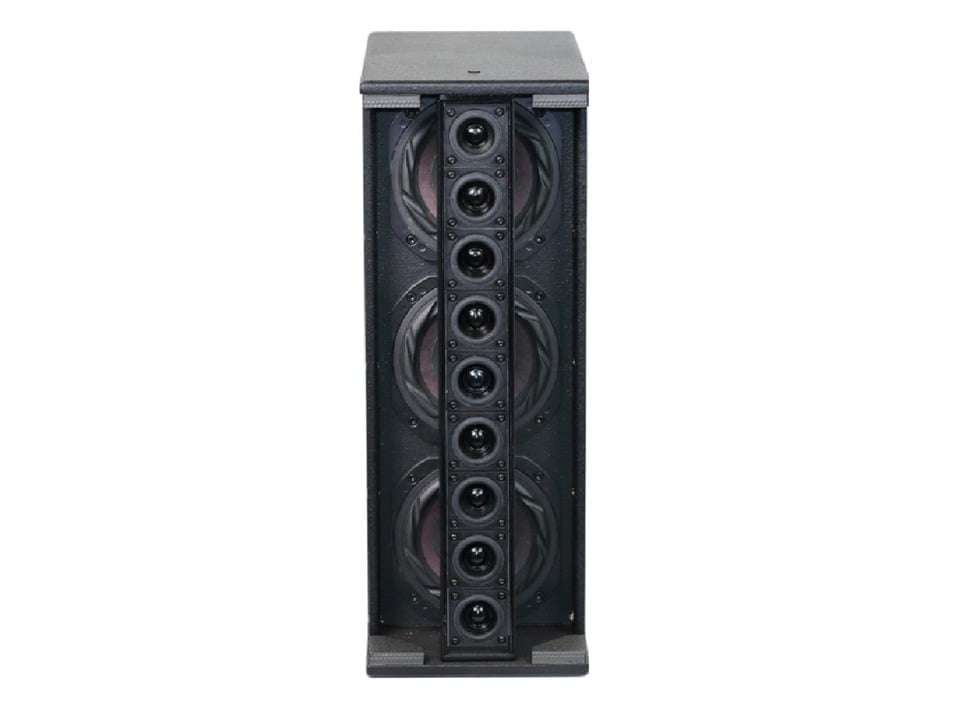

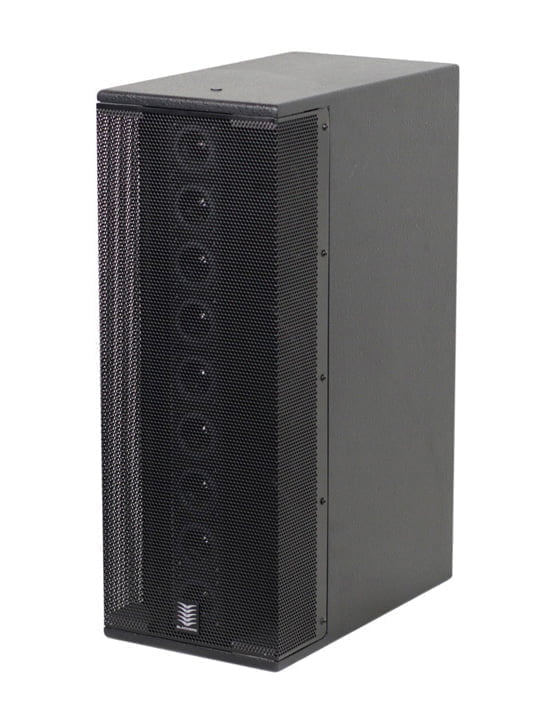

The TLA039A system enclosure comprises 3 x 6.5” Neodymium long-throw woofers and 9 x 2” full range elements.

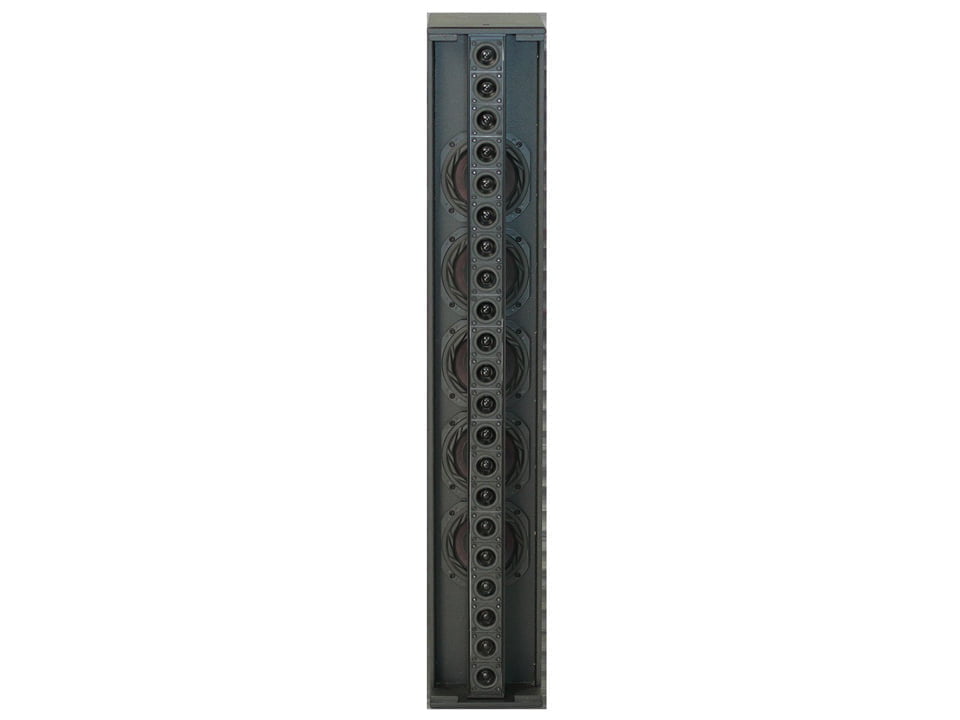

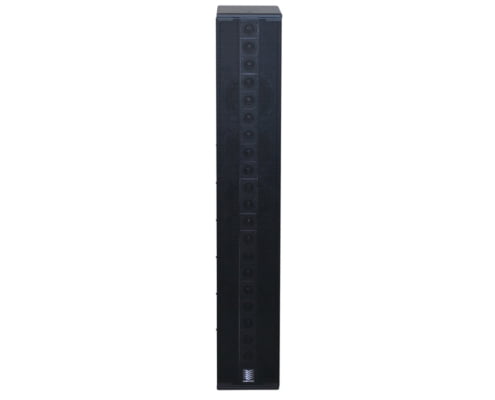

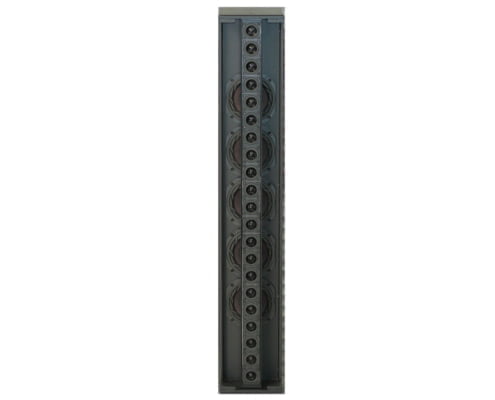

The TLA521A system enclosure comprises 5 x 6.5” Neodymium long-throw woofers and 21 x 2” full range elements.
The multi-element full range line array can be adjusted for optimal focusing within the audience listening plane.
The TLA039A and TLA521A are powered by a new generation Powersoft Class D Module with Digital Signal Processing (DSP) which features an integrated Switch Mode Power Supply. The amplifier module provides Soft Limit and Thermal Overload protection, balanced XLR audio connectors, a Gain Trim control, Preset Select switch and a PowerCon® mains inlet. The Preset Select switch changes settings in the factory programmed DSP to provide superb performance for all applications.
The cabinet is constructed from premium grade Birch ply and is available with multiple colour choices for décor matching. A perforated steel mesh grille protects the system components. A range of flying hardware options are available.
The TLA039A and TLA521A are highly accurate professional loudspeaker systems offering extremely high output with a smooth extended frequency response, eminently suitable for all music and vocal reproduction in applications as diverse as worship production, theatre performances and corporate audio/video presentations.
Specifications
Acoustic Performance | |
| Frequency Response | 60 Hz – 18 kHz -10 dB |
| Maximum SPL (Calculated) | TLA039A – 121dB @ 1 metre TLA521A – 124dB @ 1 metre |
| High Frequency Dispersion | TLA039A – 120° (H) x 18° (V) TLA521A – 120° (H) x 10° (V) |
System Components | |
| Transducer Complement | TLA039A – 3 x 6.5″ Neodymium LF Transducer 9 x 2.0″Neodymium Full Range Transducer TLA521A – 5 x 6.5″ Neodymium LF Transducer |
Amplifier Specifications | |
| Input Impedance | 10k Ohms Balanced |
| Amplifier Module Output Power | 1,400 Watts RMS |
| Amplifier Module Type | Powersoft Class D Amplifier with on-board DSP Switch Mode Power Supply |
| Amplifier Protection | Over Current / Short Circuit Over Temperature DC or High Frequency on Outputs |
| Indicator LEDs | Power On Status Signal Present Limit Active or Over Temperature Protection Preset Selected 1 – 4 |
| Connectors, Controls and Switches | Signal Input & Signal Link XLR Connectors USB Type B Powersoft Programming Connector PowerCon® AC Mains Inlet Input Level Control |
Enclosure Specifications | |
| Physical Size | TLA039A – 556mm (H) x 208mm (W) x 366(D) TLA521A – 1,246mm (H) x 208mm (W) x 366(D) |
| Weight | TLA039A – 15.2 Kgs TLA521A – 31.0 Kgs |
| Enclosure Finish | Paint finish with multiple colour choices for décor matching. |
| Grille Finish | Black Powder Coat finish, lined with acoustically transparent material |
| Mounting Options and Hardware | ‘C’ Bracket as standard. Rigging Points and other options available on request. |
The TLA039A and TLA521A enclosures are constructed of high quality void free 12mm Birch ply. The transducers are protected by a perforated steel mesh, lined with acoustically transparent material, providing a durable visually appealing finish.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard.
Acoustic Technologies reserve the right to alter or amend the TLA039A and TLA521A, without prior warning in the interests of product improvement.
