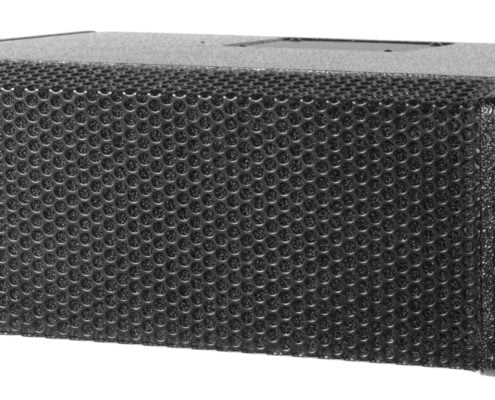

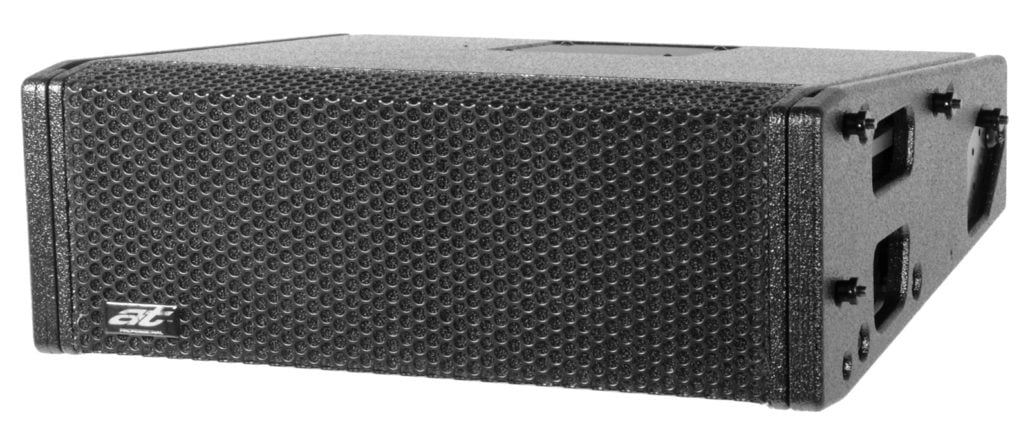

TLA306
Line Array Enclosure
1x 6.5″ Bass Driver + 1x 6.5″ Bass/Mid Driver + ISOPHASIC HF Device – 1090 Watts Program
The Acoustic Technologies TLA306 Line Array Loudspeaker System is an innovative 3-way design, featuring two high output 6.5” Neodymium transducers. One transducer is dedicated to the L.F. band, the second reproduces the mid-band information.
The H.F. domain is handled by a 1” exit compression driver coupled to an Isophasic Diffraction Aperture offering horizontal H.F. dispersion of 150º. Vertical dispersion is determined by the length and curvature of the array.

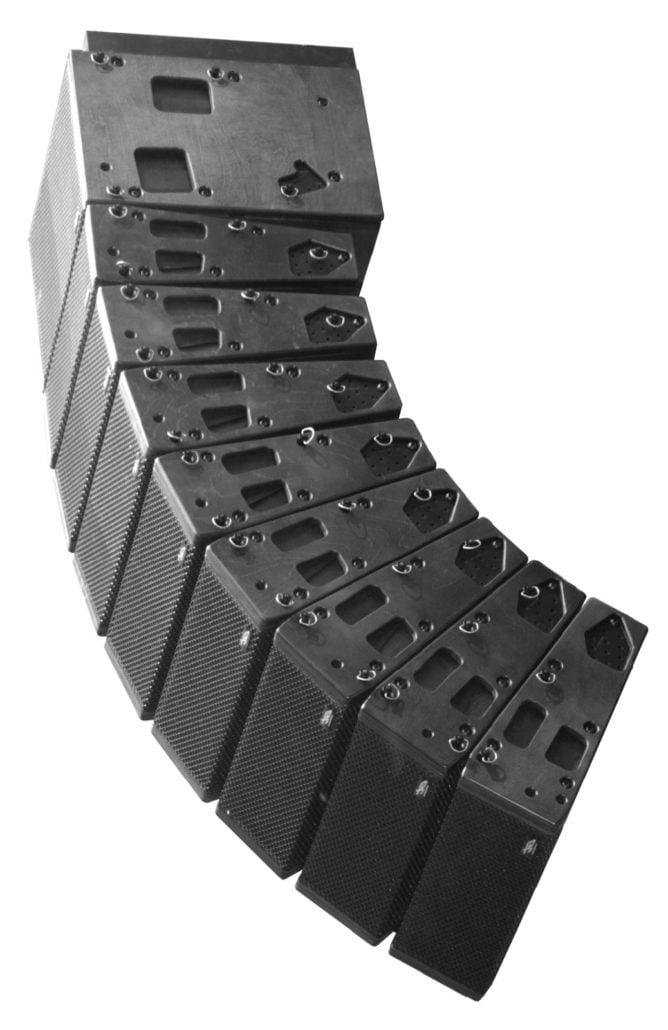

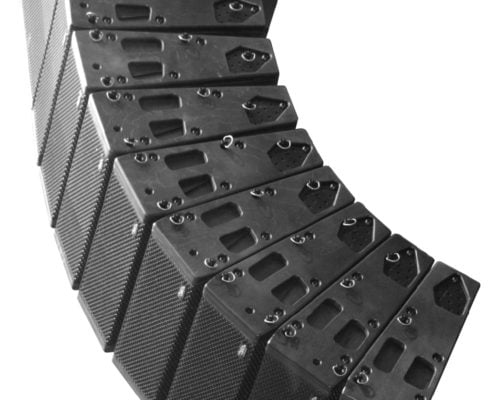

The proprietary Blackbird Flying Hardware System is an integral part of the design allowing vertical arrays of up to 16x TLA306 cabinets + 2x TLA306B sub bass cabinets to be easily suspended. Inter-cabinet angles are adjustable in 1º increments, from 0º to 10º, with the pivot point located at the front baffle to maintain the integrity of the H.F. Aperture.
The flying system is designed so that all parts are captive to the cabinet frame ensuring no parts are lost in transit.
The extensively braced cabinet is constructed entirely from premium grade, void free Finnish Birch ply and is fitted with a rugged perforated steel grille to the protect the transducers. The cabinet is finished in black AcoustiCoate elastomer and fitted with dual NL8 Speakon connectors with loop thru connections for Sub Bass provided. The cabinet is also available in a range of custom finishes on request.
The TLA306 Blackbird Line Array System is ideal for compact touring systems, outdoor music festivals and sporting events, corporate presentations and a wide range of in-house sound reinforcement applications including houses of worship, theatres and showrooms.
Specifications
| Transducer Complement | 1 x 6.5″ Low Transducer 1 x 6.5″ Midrange Transducer 1 x 1″ H.F. Compression Driver | |
| Frequency Response (No system processing) | Low Midrange High | 63 Hz – 3 .0 kHz 110 Hz – 3.5 kHz 1.5 kHz – 18 kHz |
| Sensitivity (No system processing) | Low Midrange High | 92.5 dB @ 1 watt, 1 metre 100 dB @ 1 watt, 1 metre 103 dB @ 1 watt, 1 metre |
| Maximum Input Continuous | Low Midrange High | 130 Watts RMS 130 Watts RMS 25 Watts RMS |
| Maximum Input Program | Low Midrange High | 260 Watts Program 260 Watts Program 38 Watts Program |
| Maximum Input Peak Program | Low Midrange High | 520 Watts Peak Program 520 Watts Peak Program 50 Watts Peak Program |
| Maximum SPL Peak Program Flat Array (Calculated) | 1 Cabinet 2 Cabinets 4 Cabinets | 120 dB @ 1 metre 126 dB @ 1 metre 132 dB @ 1 metre |
| Nominal Impedance | Low Midrange High | 16 Ohms 16 Ohms 16 Ohms |
| High Frequency Dispersion | Horizontal Vertical | 150° Single cabinet vertical dispersion <10° Arrayed system determined by array size. |
| Curved Array Cabinet Angle | Maximum 10° between adjacent cabinets. | |
| Recommended Crossover Frequencies and Filter Slopes. | See PDF downloads above | |
| Physical Size | 490mm(W) x 175mm(H) x450mm(D). | |
| Net Weight | 17 Kg. | |
| Connectors | 2 x Speakon NL8MP Connectors. | |
| Cabinet Finish | AcoustiCoate Black Elastomer Finish. | |
| Grille Finish | Black Powder Coat Paint Finish. | |
| Flying Hardware | Type Load Rating Safety Factor | TLA306 Flying Hardware System 2x TLA306B + 16x TLA306 Great than10 (Confirmed by destructive testing) |
| Top Flying Frame | Type Application Weight Load Rating Safety Factor | TFF306 Flying Frame Ground Stacked or Flown System 9 Kg 2x TLA306B + 16x TLA306 Great than10 (Confirmed by destructive testing) |
The TLA306 Blackbird Line Array is constructed of high quality void free Finnish Birch ply. The transducers are protected by a rugged perforated steel grille. Acoustically transparent PVC foam is bonded to the mesh, providing a durable, visually appealing finish.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the TLA306, without prior warning in the interests of product improvement.
