TLA508
Line Array Enclosure
2x 8″ Bass/Mid Driver + ISOPHASIC HF Device – 1550 Watts Program

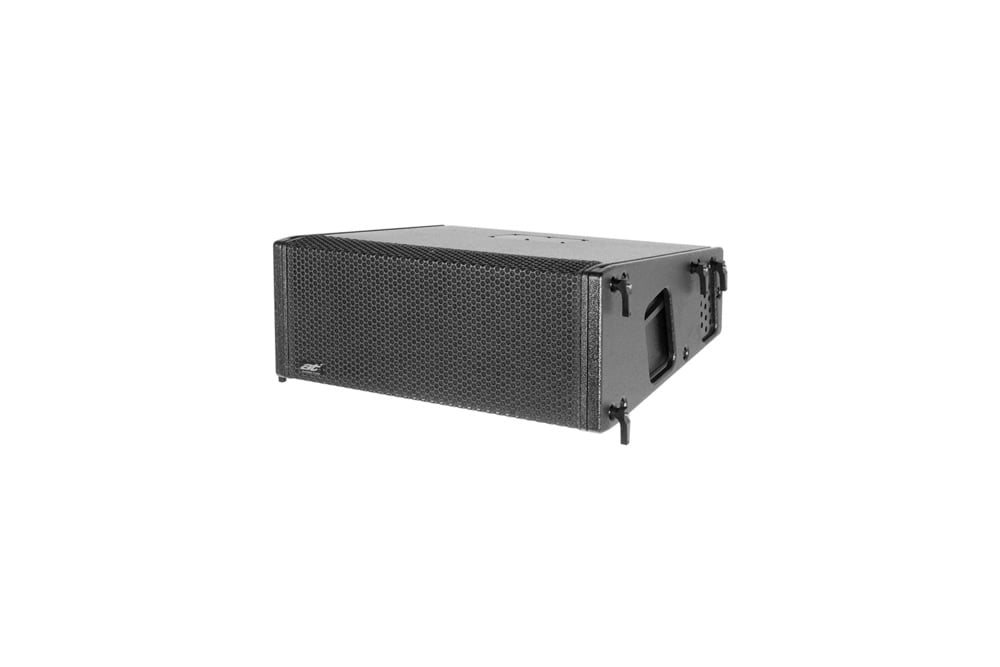

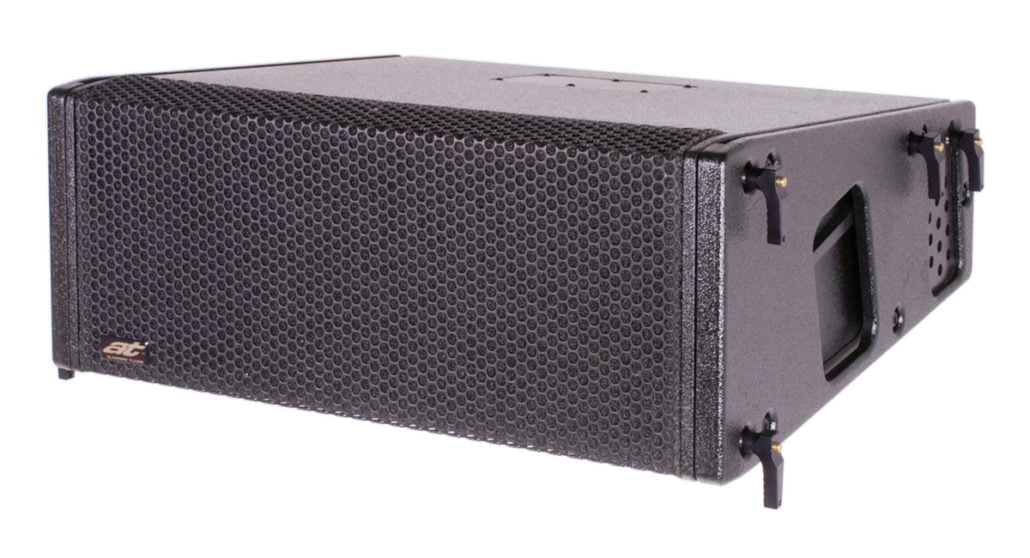

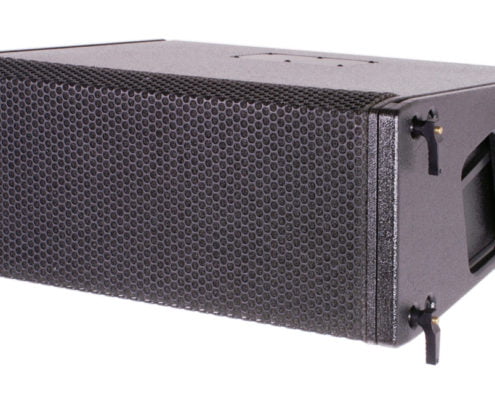

The Acoustic Technologies TLA508 Line Array Loudspeaker System is an innovative 2-way design, featuring two high output 8″ Neodymium transducers to reproduce the low frequency and mid-band information. This arrangement offers superb low frequency performance whilst maintaining a phase coherent output in the mid-band.
The High Frequency domain is handled by a 1.4″ exit compression driver coupled to an Isophasic Diffraction Aperture offering horizontal High Frequency dispersions of 60°, 90° and 150° in symmetrical or asymmetrical configurations. Vertical dispersion is determined by the length and curvature of the array.

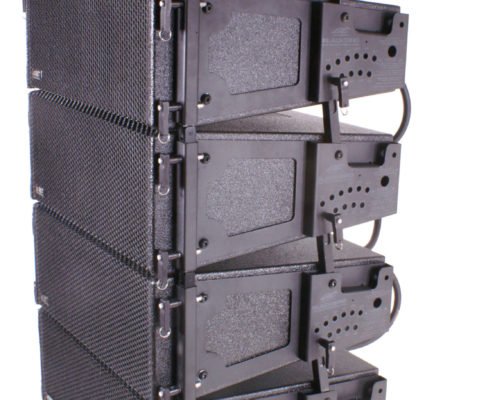

The proprietary Blackbird Flying Hardware System is an integral part of the design allowing vertical arrays of up to 16 cabinets to be easily suspended. Inter-cabinet angles are adjustable in 1° increments, from 0° to 10°, with the pivot point located at the front baffle to maintain the integrity of the High Frequency Aperture.
The flying system is designed so that all parts are captive to the cabinet frame ensuring no parts are lost in transit. The fly-header bar may be inverted for ground stack applications.
The extensively braced cabinet is constructed entirely from premium grade, void free Birch Ply and is fitted with a rugged perforated steel grille to the protect the transducers. The cabinet is finished in black AcoustiCoate elastomer and fitted with dual NL4 Speakon connectors with loop thru connections for Sub Bass provided.
The TLA508 Blackbird Line Array System is ideal for compact touring systems, outdoor music festivals and sporting events, corporate presentations and a wide range of in-house sound reinforcement applications including houses of worship, theatres and showrooms.
Specifications
| Transducer Complement | 2 x 8″ Low / Midrange Transducer 1 x 1.4″ H.F. Compression Driver | |
| Frequency Response | Low / Midrange High | 60 Hz – 6 kHz ± 3 dB 500 Hz – 20kHz ± 3 dB |
| Sensitivity | Low / Midrange High | 97 dB @ 1 watt, 1 metre 109 dB @ 1 watt, 1 metre |
| Power Handling | Low / Midrange High | 1400 Watts Program 150 Watts Program |
| Maximum SPL Flat Array (Calculated) | 1 Cabinet 2 Cabinets 4 Cabinets | 127 dB @ 1 metre 133 dB @ 1 metre 139 dB @ 1 metre |
| Nominal Impedance | Low / Midrange High | 16 Ohms 16 Ohms |
| High Frequency Dispersion | User installed HF wave guides to provide 60°, 90°, or 150° Horizontal Dispersion. Single cabinet Vertical Dispersion <10° Arrayed system vertical dispersion determined by array size. | |
| Curved Array Cabinet Angle | Maximum 10° between adjacent cabinets. | |
| Physical Size | 606mm(W) x 230mm(H) x490mm(D) | |
| Net Weight | 28.6 Kg | |
| Connectors | 2 x Speakon NL4MP Connectors. | |
| Cabinet Finish | AcoustiCoate Black Elastomer Finish. | |
| Grille Finish | Black Powder Coat Paint Finish. | |
| Flying Hardware | Type Load Rating Safety Factor | TLA508 Flying Hardware System 3x TLA508B + 16x TLA508 Greater than 10 (Confirmed by destructive testing) |
| Top Flying Frame | Type Application Weight Load Rating Safety Factor | TFF508 Flying Frame Ground Stacked or Flown System 15Kg 3x TLA508B + 16x TLA508 Greater than 10 (Confirmed by destructive testing) |
The TLA508 Blackbird Line Array is constructed of high quality void free Birch Ply. The transducers are protected by a rugged perforated steel grille. Acoustically transparent PVC foam is bonded to the mesh, providing a durable, visually appealing finish.
Sensitivity, Maximum Power and SPL measurements are conducted in accordance with the AES 24 Hour Pink Noise Standard. Acoustic Technologies reserve the right to alter or amend the TLA308, without prior warning in the interests of product improvement.
